Forged Fittings Supplier & Stockist In India

Asian Metal & Engineering Co. is a trusted manufacturer, supplier, and exporter of high-quality Forged Fittings in various grades and materials including Stainless Steel, Carbon Steel, Alloy Steel, and Duplex Steel. Our product range includes Socket Weld Fittings, Threaded Fittings, Elbows, Tees, Couplings, Unions, Crosses, Nipples, and Caps, designed for high-pressure applications. All forged fittings are produced in accordance with ASTM, ASME, DIN, and MSS-SP standards to ensure superior strength, precision, and leak-proof performance. Our fittings are widely used in oil & gas, petrochemical, power generation, marine, and construction industries, offering excellent resistance to corrosion, high temperature, and stress. Asian Metal & Engineering Co. guarantees quality, reliability, and timely delivery for every forged fitting supplied worldwide.

Table of Contents

Forged Fittings Manufacturers Suppliers & Stockists in India - Asian Metal & Engineering Co.

ASTM A182 Stainless Steel 304 Forged Elbow, SS 310S Union, ASME/ANSI B16.11 Threaded Bushing, ASME SA182 Stainless Steel Forged Fittings Dealers in India

ASME SA182 Stainless Steel Forged Fittings Specification, Grades, Size

SS Forged Pipe Fitting Materials

Types Of Forged Fittings

  • Forged Elbow
  • Forged Tee
  • Forged Cross
  • Forged Caps
  • Forged Reducer
  • Forged Bushing
  • Forged Coupling
  • Forged Plug

Forged Fittings End Connections

Asian Metal & Engineering Co. is one of the leading ASME/ANSI B16.11 Threaded Bushing Manufacturers and Suppliers in India.

Forged Pipe Fittings Application & Uses

Contact Us

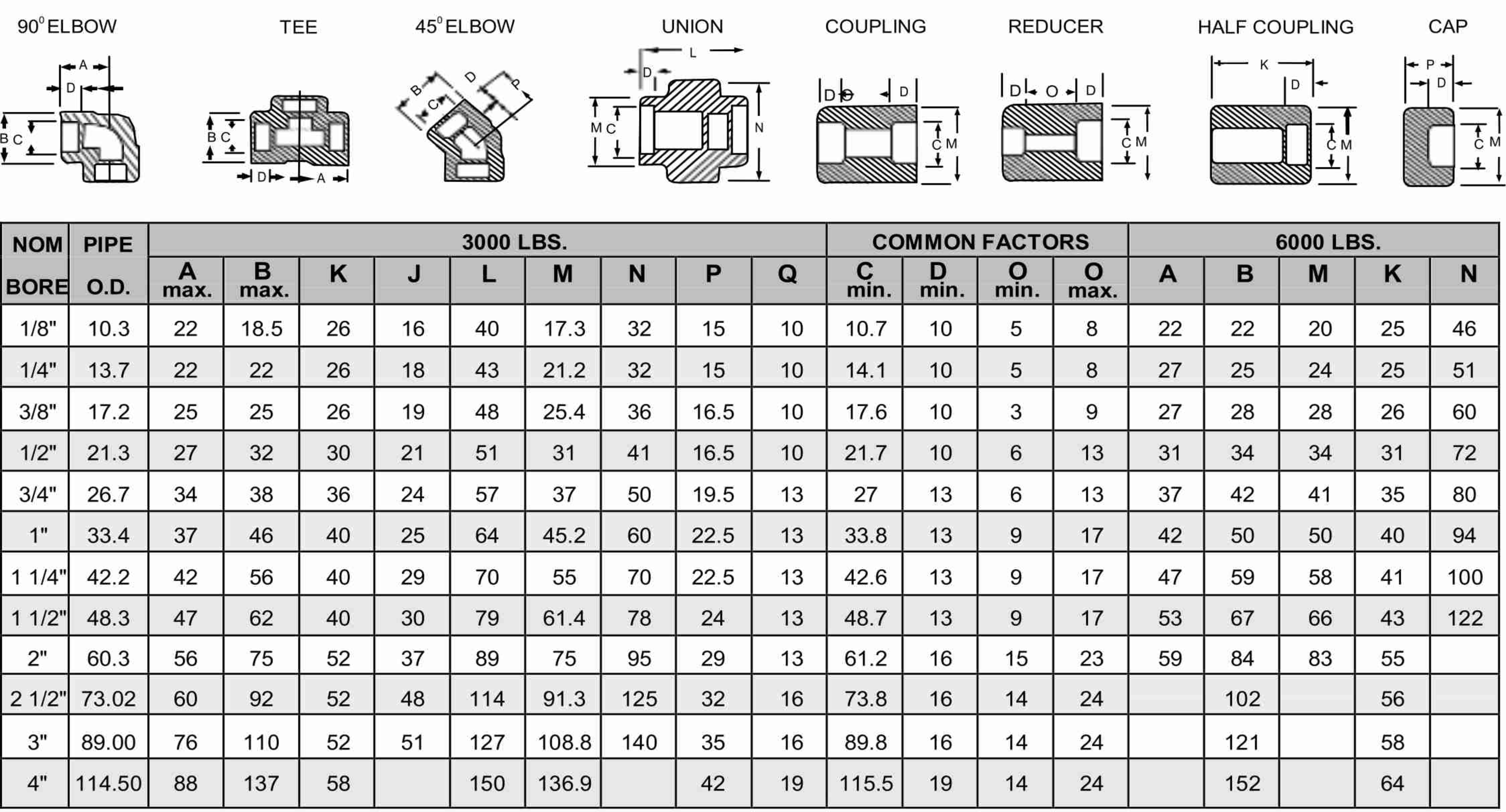

ASME B16.11 Forged Socket Weld Fittings Dimension & Sizes

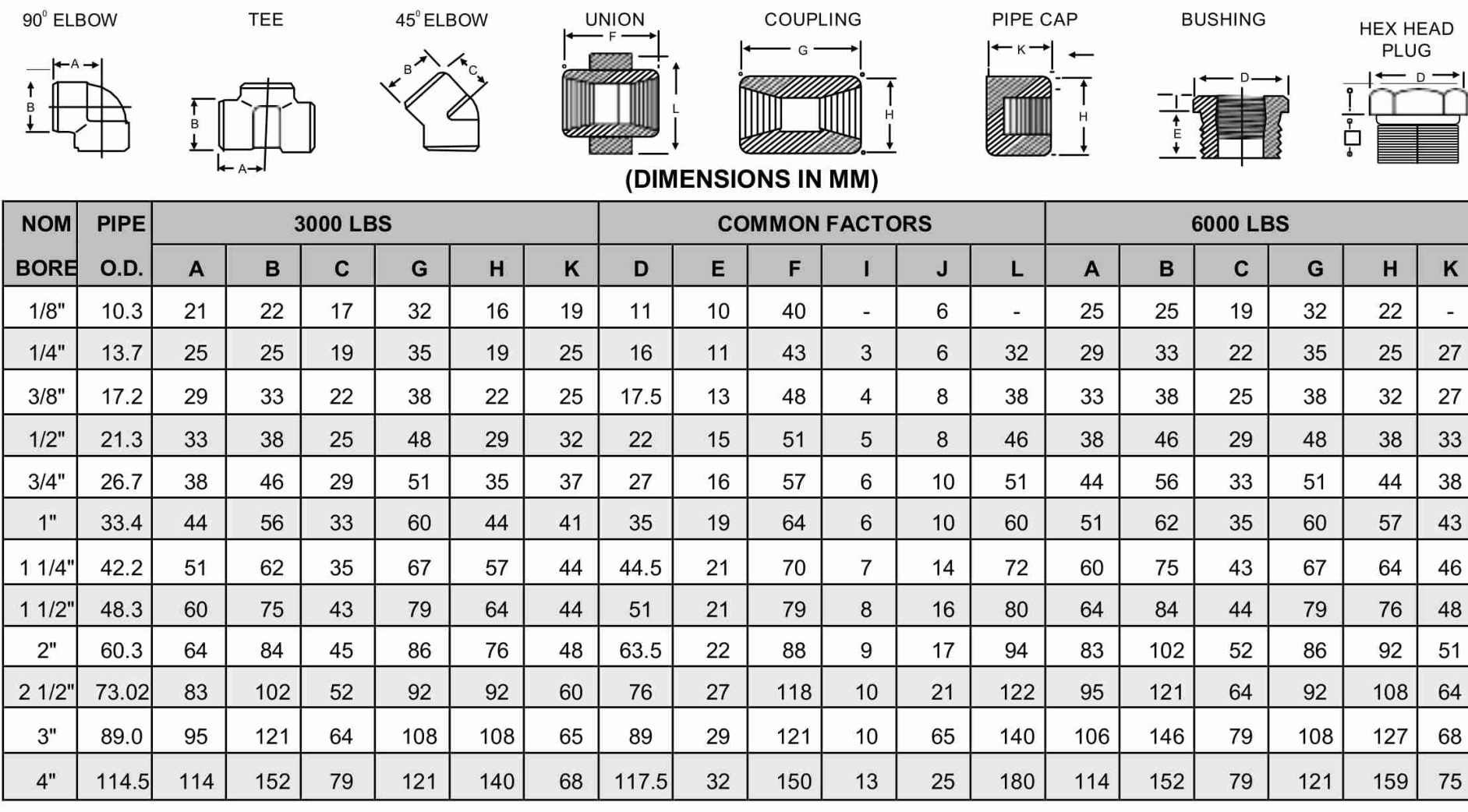

Forged Screwed Fittings Dimension & Sizes

Forged Fittings Weight Chart

Other Related Products

Forged Fittings Packing & Delivery Details:-

Client Projects for Stainless Steel Forged Fittings Supplier in India:-

ASME SA182 Stainless Steel Forged Fittings Manufacturers and Suppliers in India - Asian Metal & Engineering Co.

ASME SA182 Stainless Steel Forged Fittings Manufacturers Exporters in India - Asian Metal & Engineering Co.

Forged Fittings Manufacturers Suppliers & Stockists in India- Asian Metal & Engineering Co.

Asian Metal & Engineering Co. is one of the leading Stainless Steel Forged Fittings Manufacturers in Mumbai, India. The Stainless Steel Forged Fittings we provide have been designed under the national and international industry rules using high-grade raw materials and advanced technology. Our ASME SA182 Stainless Steel Forged Fittings, and other products are subjected to various quality checks, and then goes for packaging. We have a ready stock of Stainless Steel Forged Fittings of different sizes and shapes per the customers’ requirements. These Forged Fittings are used in Industrial Sectors like Building & Construction Industry, petrochemical, Oil & Gas Industry, and chemical industries. Moreover, Forged Fittings can be tailored as per our client’s requirements.

Flanges Manufacturer

ASTM A182 Stainless Steel 304 Forged Elbow, SS 310S Union, ASME/ANSI B16.11 Threaded Bushing, ASME SA182 Stainless Steel Forged Fittings Dealers in India

Stainless Steel Forged Fittings are machined with solid forgings. We are also known as one of the Largest Suppliers of high-quality Stainless Steel Forged Fittings, Carbon Steel Forged Fittings, Cupro Nickel Forged Fittings, Monel Forged Fittings & ASME B16.11 Forged Pipe Fittings and many more. Stainless Steel Forged Fittings are defined as one of the essential parts of the Pipe Fitting Industry. Forged Fittings are available in many forms such as Tee, Union, Full Coupling, Half Coupling, Elbow 45 Deg & 90 Deg, Swage Nipple, and Cross. Forged Fittings are available with us in 2 types Socketweld Fittings and Threaded Fittings. We provide easy access for cleaning, inspection, or modification. We are also known as one of the Largest Suppliers of Stainless Steel Flanges.

ASME SA182 Stainless Steel Forged Fittings Specification, Grades, Size

Forged Pipe Fittings Type Socket Weld Threaded
Pressure Class 2000LBS, 3000LBS, 6000LBS, 9000LBS 2000LBS,3000LBS, 6000LBS, 9000LBS
Fittings Form 90° Elbow, 45° Elbow, Tee, Cross, Full Coupling, Half Coupling, Pipe Cap, Union, Reducer Insert, Boss, Branch Outlet, 90° Elbow Outlet, 45° Lateral Tee, Lateral Outlet, Branch Outlet Butt Weld, 90° Elbow Outlet Butt Weld, Lateral Outlet Butt Weld, Nipple Branch Outlet Butt Weld 90° Elbow, 45° Elbow, Tee, Cross, Full Coupling, Half Coupling, Reducing Coupling, Pipe Cap, Hex Head Bushing, Hex Head Plug, Square Head Plug, Round Head Plug, Union, Hex Nipple, Street Elbow, Bull Plug, Boss, Swage Nipple, Pipe Nipple, Adapter, Union (Male x Female), Branch Outlet, 90° Elbow Outlet, 45° Lateral Tee, Lateral Outlet, Nipple Branch Outlet
Dimension Specifications ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8″~4″ (DN6~DN100) 1/8″~4″ (DN6~DN100)
Thread —– ISO, DIN, NPT, BSPT

SS Forged Pipe Fitting Materials

Material Specification
Stainless Steel ASTM A182 F-304/304H/304L/316/316H/316/316Ti, 309, 310, 317L, 321, 347, 904L
Duplex and Super-Duplex Steel ASTM A 182-F51, F53, F55
Nickel ASTM B 564 N02200, N02201
Inconel ASTM B 564 N06600, N06601, N06617, ASTM B 564 N07718, ASTM B 564 N06625
Incoloy ASTM B 564 N08800, N08810, ASTM B 564 N08825, ASTM B 564 N08020
Hastelloy ASTM B 564 N10276, N06022, ASTM B 564 N10665, ASTM B 564 N06455
Titanium-Commercially ASTM B 861, 862, 338 Gr.1 R 56250(CP4)
Titanium-Pure Gr.2 R 50400(CP3) Gr.3 R 50550(CP2) Gr.4 R 50700(CP1) Gr.7 R 52400 Gr.11 R 52250
Titanium-Alloys ASTM B 861, 862, 338 Gr.5 R 56400(6AI-4V) Gr.23 R 56401(6AI-4V-ELI) Gr.12 R 53400
Cupro Nickel ASTM B 171 C70600(90:10), ASTM B 171 C71500(70:30)
Monel ASTM B 564 N04400 DIN N05500
Carbon Steel ASTM A 234 WPB IS 1239 PART II
Alloys Steel ASTM A 234 WPB WP5, WP9, WP11, WP12, WP91
Low Temp. CS ASTM A-420 WPL6
Other Service Hot Dip Galvanizing, Sand Blasting
Test Certificate Manufacturer Test Certification En 3.1 and 3.2, IBR Test Certificate
Specializing In: Large Diameter CS Pipes and Duplex Steel Inconel®, Incoloy®, Monel®, Hastelloy®, and Duplex® are Registered Trade Marks of their Respective Owners.

Types Of Forged Fittings

Slip On Flanges

FORGED ELBOW

Weld Neck Flanges

FORGED TEE

Blind Flanges

FORGED CROSS

Screwed Threaded Flanges

FORGED CAPS

Socket Weld Flanges

FORGED REDUCER

Lap Joint Flanges

FORGED BUSHING

Long Weld Neck Flanges

FORGED COUPLING

Ring Type Joint Flanges

FORGED PLUG

Spectacle Blind Flanges

FORGED CONNECTION

Asian Metal & Engineering Co. is one of the leading ASME/ANSI B16.11 Threaded Bushing Manufacturers and Suppliers in India.

Asian Metal & Engineering Co. is India’s most trusted ASME SA182 Stainless Steel Forged Fittings manufacturer. Our High-quality Stainless Steel Forged Fittings, sensible customer service, and in-house Forged Pipe Fittings processing capabilities have made us one of the best emerging and leading suppliers for ASME B16.9 Forged Fittings in India. Asian Metal & Engineering Co. is an ISO 9001:2009 certified company that has been in existence since 2003. Product dependability and performance have created Asian Metal & Engineering Co., a leading businessperson, manufacturer, and supplier of ASME B16.11 Forged Fittings in India.

Forged Pipe Fittings Application & Uses

  • Forged Fittings used in Transporting materials
  • Stainless Steel Forged Fittings are used in the Automotive industry
  • Forged Fittings used in Homes and buildings
  • SS Forged Fittings are used in Sewerage systems and industrial water lines
  • Carbon Steel Forged Fittings are used in heating and air-conditioning equipment
  • Forged Fittings used in Plumbing
  • ASME B16.11 Forged Fittings used in Food Processing Industry
  • Forged Fittings used in the Paper & Pulp Industry
  • ASME B16.9 Fittings used in Food Industry

Socket Weld Fitting To ANSI B-16.11

Forged Screwed Fitting To ANSI B-16.11 3000/6000 LBS Threaded To ASA B 2.1

Forged Fittings Weight Chart (Approx. kg per piece) — ASTM A105, Class 3000

Size (NB) 90° Elbow (SW) 45° Elbow (SW) Tee (SW) Full Coupling Half Coupling Union Cap
1/8"0.030.020.040.040.020.090.03
1/4"0.050.030.060.060.030.130.04
3/8"0.090.060.120.100.050.180.05
1/2"0.150.100.220.160.080.280.08
3/4"0.280.180.380.270.130.420.13
1"0.450.280.680.420.200.700.20
1-1/4"0.750.451.100.600.281.000.32
1-1/2"1.100.651.700.850.401.500.45
2"1.801.102.801.400.702.500.70
2-1/2"3.101.904.602.501.204.001.20
3"4.502.807.003.801.705.801.80
4"8.005.0012.206.802.9010.503.00

Forged Fittings Manufacturers and Suppliers in India – Asian Metal & Engineering Co.

Forged Fittings reliability and quality have made Asian Metal & Engineering Co. a leading supplier, dealer, manufacturer, and exporter of ASME/ANSI B16.11 Stainless Steel Forged Fittings in India. Each month we supply/export forged fittings to over fifty cities across India and abroad. Asian Metal & Engineering Co. is a trusted Forged Fittings supplier in Mumbai, Chennai, Surat, New Delhi, Bangalore, and over 80+ other cities.

The Cities We Supply Types of Forged Fittings:
Bengaluru Mumbai Chennai Hyderabad Kolkata Pune
New Delhi Ahmedabad Jaipur Surat Salem Gandhinagar
Bhiwandi Tiruppur Sivakasi Jamnagar Thiruvananthapuram Rajahmundry
Bhubaneswar Vijaywada Firozabad Bokaro Steel City Rajkot Bharuch
Panna Raipur Cochin Ludhiana Panipat Durgapur
Peenya Pimpri-Chinchwad Channapatna Kharagpur Nashik Bareilly
Varanasi Haldia Rourkela Bangalore Moradabad Indore
Visakhapatnam Trivandrum Pithampur Dibrugarh Angul Gwalior
Coimbatore Kannur Nagpur Vadodara Rudrapur Noida
Agra Bhagalpur Jamshedpur Bhilai Lucknow Kanpur
Thane Bhopal Sri City Bareilly Hosdurg Pithampur

Other Related Forged Fittings Products

  • Forged Elbow Manufacturers in India
  • Forged Tee Manufacturers in India
  • Forged Cross Manufacturers in India
  • Forged Caps Manufacturers in India
  • Forged Reducer Manufacturers in India
  • Forged Bushing Manufacturers in India
  • Forged Coupling Manufacturers in India
  • Forged Plug Manufacturers in India

Client Projects for Forged Fittings Supplier in India:-

We regularly supply these products to different cities in India. We have a huge clientele covering more than 55 cities in India and 33 countries worldwide. We are known as Forged Fittings Supplier and Exporters.

Product Supplied City
Forged Elbow for Automobile Industry Mumbai, Maharashtra
Forged Tee Supply Hyderabad, Telangana
Forged Reducer for Water Supply System Bangalore, Karnataka
Forged Bushing for Chemical Industry Surat, Gujarat
